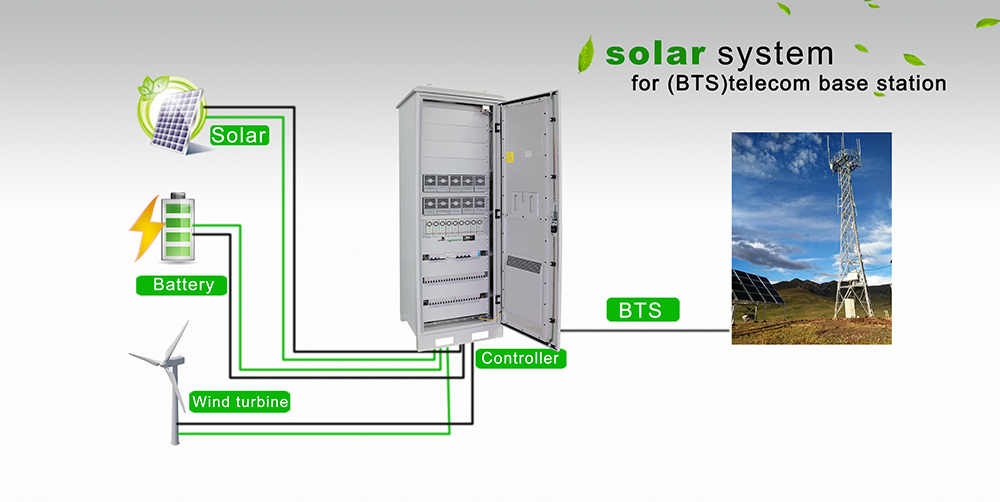

Solar Power Supply 48VDC SHW48500 Outdoor Solar Power System for Telecom Station

Short Description:

System Type:Off-Grid Solar System

Product Detail

Overview

Quick Details

Place of Origin:	Guangdong, China	Output Current:	50-500A
Brand Name:	SOROTEC	Input Voltage:	220VAC
Model Number:	SHW48500	Output Voltage:	48VDC
Application:	Industrial	Built-in MPPT:	3000W /50A
Specification:	Normal	Operating Temperatur:	- 20℃ to 55℃
Model:	SHW48500 Solar DC Power System	Overload Protection:	>110% Audible Alarm
Battery Voltage:	48VDC	Output Voltage (V):	48V

Supply Ability

Supply Ability:5000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details：carton, export type packing or according to your requirement Port：Shenzhen

Product Description

Solar Power Supply 48VDC SHW48500 Solar DC Power Systems with Dust-proof Function

Application

Power plant or substation power for controlling, protection and automatic device, emergency lighting, communications, steam turbine DC oil pump and so on independent DC systems. It can provide reliable power supply in the case of a power failure completely in plant or substation. The traditional DC systems connect battery pack and run with float charging mode. The new DC system run with silicon controlled rectifying power supply for battery.

Key Features:

1.Adopt advanced MCU microprocessor control technology
2.Advanced MPPT Technology.High converting efficiency higher than 97% for
minimizing energy loss.
3.Reversed current protection at night.over voltage and reverse polarity protection
4.Capable of selection different charging mode fo various types of batteries
5.Protection degree:IP55
6.Industy-leading power density compact size and high reliability
7.Doorframe designed with waterproof structure, posted on the seal and equipped with wateerproof lock in the door double insulation design
8.Cabine adopt quality galvanized wheet or aluminum coated steel sheet as material, surfce coating anti-UV power
9.Suitable for outdoor installation
10.With remote monitoring system aperation

Remote Monitoring System Interface

Specification

item	value
Place of Origin	China
Place of Origin	Guangdong
Brand Name	SOROTEC
Model Number	HW48200
Type	DC/DC Converters
Output Current	0 ~ 200A
Output Frequency	45Hz ~ 65Hz
Size	445(W) × 321 (D) × 221 (H)
Weight
Certificate	CE
Relative humidity	5%RH ~ 90%RH
Altitude	≤ 3000m (derating is necessary)
AC input system	3-phase 5-wire
Rated input phase voltage	Line voltage 380Vac
Input voltage range	85Vac ~ 300Vac
Input AC voltage frequency	45Hz ~ 65Hz
Max. input current	≤ 55A (single phase)
Output DC voltage range	42Vdc ~ 58Vdc
