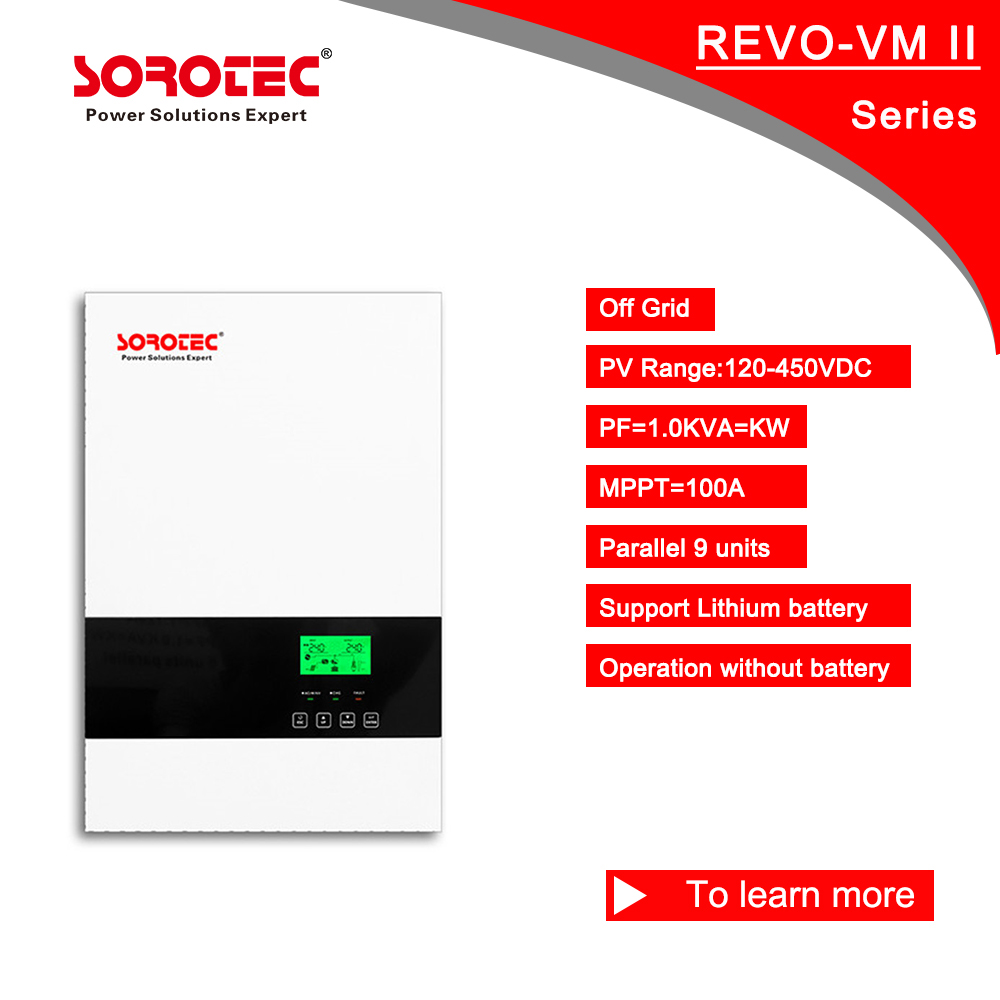

Lowest Price for Off Grid Inverter – HIGH QUALITY REVO VM II Series Off Grid Energy Storage Solar Inverter Support wifi connect – Soro Featured Image
  • Lowest Price for Off Grid Inverter – HIGH QUALITY REVO VM II Series Off Grid Energy Storage Solar Inverter Support wifi connect – Soro
  • Lowest Price for Off Grid Inverter – HIGH QUALITY REVO VM II Series Off Grid Energy Storage Solar Inverter Support wifi connect – Soro
  • Lowest Price for Off Grid Inverter – HIGH QUALITY REVO VM II Series Off Grid Energy Storage Solar Inverter Support wifi connect – Soro
  • Lowest Price for Off Grid Inverter – HIGH QUALITY REVO VM II Series Off Grid Energy Storage Solar Inverter Support wifi connect – Soro
  • Lowest Price for Off Grid Inverter – HIGH QUALITY REVO VM II Series Off Grid Energy Storage Solar Inverter Support wifi connect – Soro

Lowest Price for Off Grid Inverter – HIGH QUALITY REVO VM II Series Off Grid Energy Storage Solar Inverter Support wifi connect – Soro

Short Description:


Product Detail

Related Video

Feedback (2)

We generally believe that one's character decides products' top quality, the details decides products' high-quality ,along with the REALISTIC,EFFICIENT AND INNOVATIVE team spirit for 50kw Huawei Inverter, 5kw Hybrid Inverter, 7kva Ups, We are going to provide most effective quality, quite possibly the most current market aggressive rate, for each and every new and outdated consumers with the most great environmentally friendly solutions.
Lowest Price for Off Grid Inverter – HIGH QUALITY REVO VM II Series Off Grid Energy Storage Solar Inverter Support wifi connect – Soro Detail:

Overview

Quick Details

Place of Origin: Guangdong, China Certificate: CE
Brand Name: SOROTEC Name: REVO VM II
Model Number: REVO VM II Voltage: 230 VAC
Type: DC/AC Inverters Frequency Range: 50 Hz/60 Hz (Auto sensing)
Output Type: Single AC Voltage Regulation (Batt. Mode): 230VAC ± 5%
Output Current: 15A Waveform: Pure sine wave
Output Frequency: 3-5.5kW Communication Interface: USB/RS232
Size: 100 x 300 x 440 Humidity: 5% to 95% Relative Humidity (Non-condensing)
Weight: 10 Storage Temperature: -15°C to 60°C
Battery Voltage: 24/48 VDC

Supply Ability

Supply Ability:5000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details：Carton, export type packing or according to your requirement
Port：Shenzhen

Key Features:

1.Pure sine wave solar inverter
2.Output power factor 1
3.Parallel operation up to 9 units
4.High PV input voltage range
5.Battery independent design
6.Built-in 100A MPPT solar charger
7.Battery equalization function to optimize battery performance and extend lifecycle
8.Built-in anti-dusk kit for harsh environment
9.REVO VM II Series Off Grid Energy Storage Inverter
Anti-Dust Kit:
1.After installing this anti-dust kit, inverter will automatically detect
2.this kit and activate internal thermal sensor to adjust internal
3.temperature. By virtue of the dustproof design, it dramatically
4.increases product reliability in harsh environment.
1 (1)
2 (1)

Wall Mounted Integrated Solar Inverter Technical Specifification

Built-in MPPT Solar Controller

MODEL REVO VM II 3000-24 REVO VM II 5500-48
Rated Power 3000VA / 3000W 5500VA / 5500W
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
ACVoltage Regulation(Batt. Mode) 230VAC ± 5%
Surge Power 6000VA 11000VA
Efficiency (Peak) 90% ~ 93%
Transfer Time 10 ms  (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform Pure sine wave
BATTERY
Battery Voltage 24 VDC 48 VDC
Floating Charge Voltage 27 VDC 54 VDC
Overcharge Protection 33 VDC 63 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage 500 VDC 500 VDC
Maximum PV Array Power 5500 5500 W
MPP Range @ Operating Voltage 120~450 VDC 120~450 VDC
Maximum Solar Charge Current 100 A 100 A
Maximum AC Charge Current 80 A 80 A
Maximum Charge Current 100 A 100 A
PHYSICAL
Dimension, D x W x H (mm) 100 x 300 x 440
Net Weight (kgs) 9 10
Communication Interface USB/RS232
ENVIRONMENT
Humidity 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C


Product detail pictures:

Lowest Price for Off Grid Inverter – HIGH QUALITY REVO VM II Series Off Grid Energy Storage Solar Inverter Support wifi connect – Soro detail pictures

Lowest Price for Off Grid Inverter – HIGH QUALITY REVO VM II Series Off Grid Energy Storage Solar Inverter Support wifi connect – Soro detail pictures

Lowest Price for Off Grid Inverter – HIGH QUALITY REVO VM II Series Off Grid Energy Storage Solar Inverter Support wifi connect – Soro detail pictures

Lowest Price for Off Grid Inverter – HIGH QUALITY REVO VM II Series Off Grid Energy Storage Solar Inverter Support wifi connect – Soro detail pictures

Lowest Price for Off Grid Inverter – HIGH QUALITY REVO VM II Series Off Grid Energy Storage Solar Inverter Support wifi connect – Soro detail pictures
